问题:

[单选]

Following ticket consists of a problem description and existing configuration on the device.

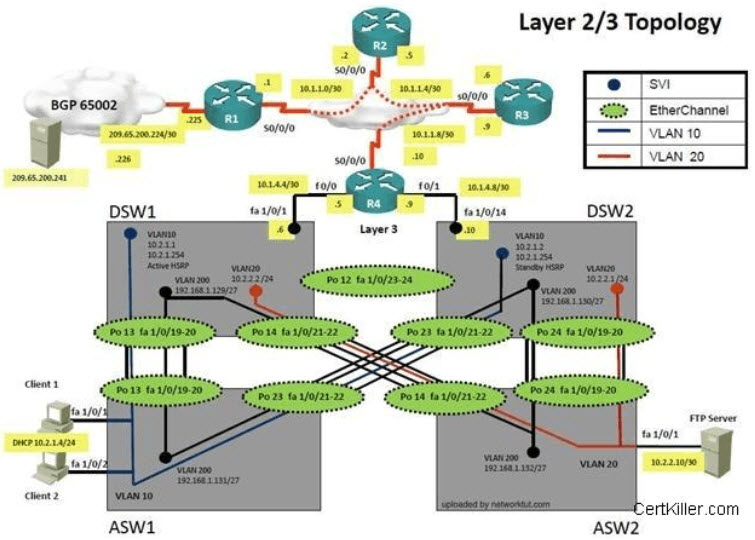

Figure 1

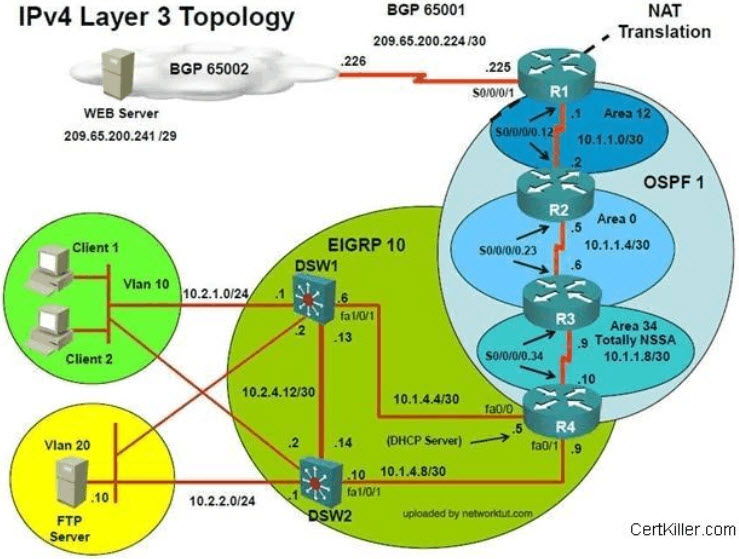

Figure 2
Trouble Ticket Statement
Client 1 is not able to reach the WebServer. Initial troubleshooting shows that DSW1 can ping the Fa0/1interface of R4 but not the s0/0/0/0.34 interface.
Configurationon DSW1
router eigrp 10
network 10.1.4.4 0.0.0.0
network 10.2.1.1 0.0.0.0
network 10.2.4.13 0.0.0.0
no auto-summary
Configurationon DSW2
router eigrp 10
network 10.1.4.8 0.0.0.0
network 10.2.2.1 0.0.0.0
network 10.2.4.14 0.0.0.0
no auto-summary
Configurationon R4
router eigrp 10
network 10.1.4.5 0.0.0.0
no auto-summary
redistribute ospf 1 metric 100 10 255 1 1500 route-map EIGRP_to_OSPF!
router ospf 1
network 10.1.1.8 0.0.0.0 area 34
redistribute eigrp 10 subnets!
route-map EIGRP→OSPF
match ip address 1!
access-list 1 permit 10.0.0.0 0.255.255.255
access-list 1 permit 209.0.0.0 0.255.255.255
On Which device is the fault condition located?()

A . DSW1
B . DSW2
C . Client 1
D . R4

双作业任务可以用来研究什么?() 工作记忆。 命题检验。 短时记忆。 概念形成。 将幼儿园教育活动的内容看成幼儿学习活动的取向,其关注点是幼儿做些什么。 维界斯基对儿童语言发展的观点同皮亚杰是一样的,都认为“语言和思维是同一过程”。 下列常出现猫眼效应的是() 碧玺。 尖晶石。 托帕石。 锆石。 军事法同其他部门法一样,具有很高的

Following ticket consists of a problem description and existing configuration on the device.

Figure 1

Figure 2
Trouble Ticket Statement
Client 1 is not able to reach the WebServer. Initial troubleshooting shows that DSW1 can ping the Fa0/1interface of R4 but not the s0/0/0/0.34 interface.
Configurationon DSW1
router eigrp 10
network 10.1.4.4 0.0.0.0
network 10.2.1.1 0.0.0.0
network 10.2.4.13 0.0.0.0
no auto-summary
Configurationon DSW2
router eigrp 10
network 10.1.4.8 0.0.0.0
network 10.2.2.1 0.0.0.0
network 10.2.4.14 0.0.0.0
no auto-summary
Configurationon R4
router eigrp 10
network 10.1.4.5 0.0.0.0
no auto-summary
redistribute ospf 1 metric 100 10 255 1 1500 route-map EIGRP_to_OSPF!
router ospf 1
network 10.1.1.8 0.0.0.0 area 34
redistribute eigrp 10 subnets!
route-map EIGRP→OSPF
match ip address 1!
access-list 1 permit 10.0.0.0 0.255.255.255
access-list 1 permit 209.0.0.0 0.255.255.255
On Which device is the fault condition located?()
