问题:

[单选]

Following ticket consists of a problem description and existing configuration on the device.

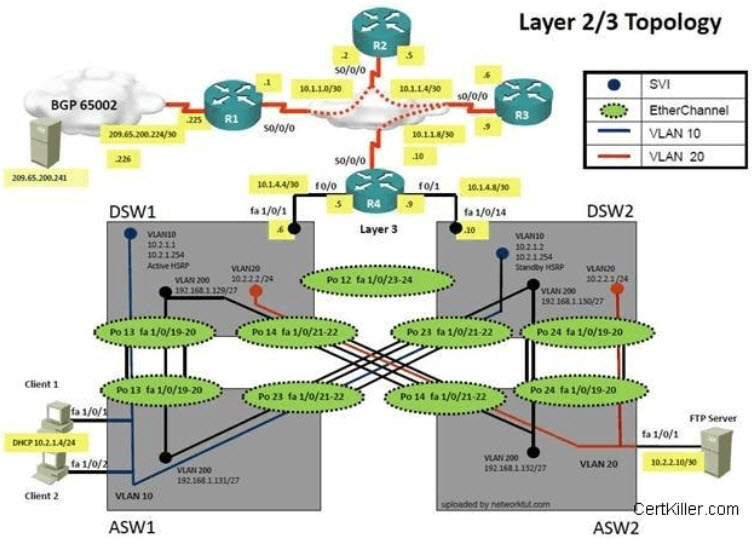

Figure 1

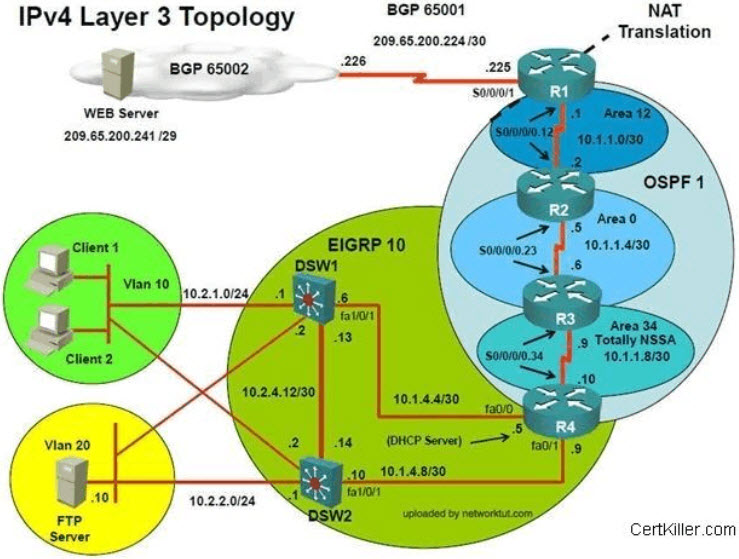

Figure 2
Trouble Ticket Statement
Client 1 is not able to reach the WebServer. Initial troubleshooting shows that DSW1 can ping the Fa0/1interface of R4 but not the s0/0/0/0.34 interface.
Configurationon DSW1
router eigrp 10
network 10.1.4.4 0.0.0.0
network 10.2.1.1 0.0.0.0
network 10.2.4.13 0.0.0.0
no auto-summary
Configurationon DSW2
router eigrp 10
network 10.1.4.8 0.0.0.0
network 10.2.2.1 0.0.0.0
network 10.2.4.14 0.0.0.0
no auto-summary
Configurationon R4
router eigrp 10
network 10.1.4.5 0.0.0.0
no auto-summary
redistribute ospf 1 metric 100 10 255 1 1500 route-map EIGRP_to_OSPF !
router ospf 1
network 10.1.1.8 0.0.0.0 area 34
redistribute eigrp 10 subnets!
route-map EIGRP→OSPF
match ip address 1!
access-list 1 permit 10.0.0.0 0.255.255.255
access-list 1 permit 209.0.0.0 0.255.255.255
The Fault Condition is related to which technology?()

A . EIGRP
B . Route Redistribution
C . OSPF
D . IP Addressing

琥珀热处理特征包体为() 气泡呈扁平拉长状定向排列。 变为半可切性。 遇乙醚变软。 太阳光芒。 团体寿险的特点有() 对团体有一定的选择标准。 免体检。 保险金分等级制定。 有保费优待。 由雇主支付保费。 关于IS-LM模型中IS曲线正确的是()。 储蓄是收入的负函数。 储蓄是利率的正函数。 投资是收入的正函数。 投资是利率的负函数。 居住区绿地的类型有:()、宅旁绿地、配套公用建筑所属绿地。 导游身心健康内容有哪些?

Following ticket consists of a problem description and existing configuration on the device.

Figure 1

Figure 2
Trouble Ticket Statement
Client 1 is not able to reach the WebServer. Initial troubleshooting shows that DSW1 can ping the Fa0/1interface of R4 but not the s0/0/0/0.34 interface.
Configurationon DSW1
router eigrp 10
network 10.1.4.4 0.0.0.0
network 10.2.1.1 0.0.0.0
network 10.2.4.13 0.0.0.0
no auto-summary
Configurationon DSW2
router eigrp 10
network 10.1.4.8 0.0.0.0
network 10.2.2.1 0.0.0.0
network 10.2.4.14 0.0.0.0
no auto-summary
Configurationon R4
router eigrp 10
network 10.1.4.5 0.0.0.0
no auto-summary
redistribute ospf 1 metric 100 10 255 1 1500 route-map EIGRP_to_OSPF !
router ospf 1
network 10.1.1.8 0.0.0.0 area 34
redistribute eigrp 10 subnets!
route-map EIGRP→OSPF
match ip address 1!
access-list 1 permit 10.0.0.0 0.255.255.255
access-list 1 permit 209.0.0.0 0.255.255.255
The Fault Condition is related to which technology?()

参考答案:

  参考解析

本题暂无解析
