Following ticket consists of a problem description and existing configuration on the device.

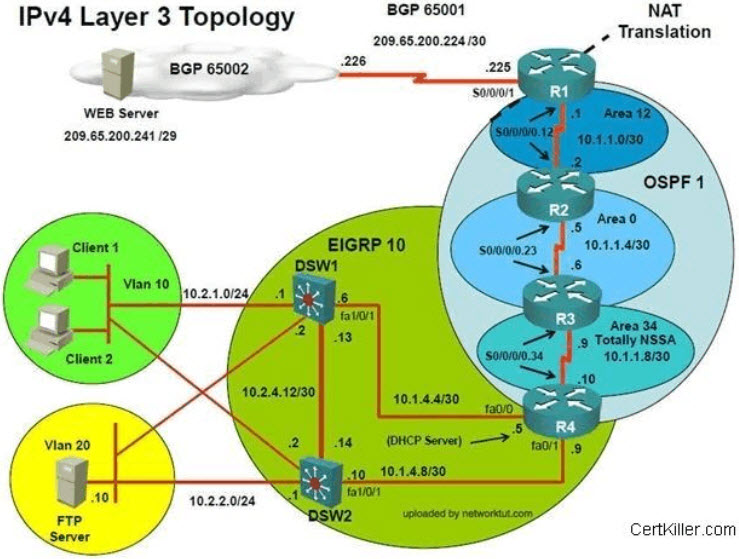

Figure 1

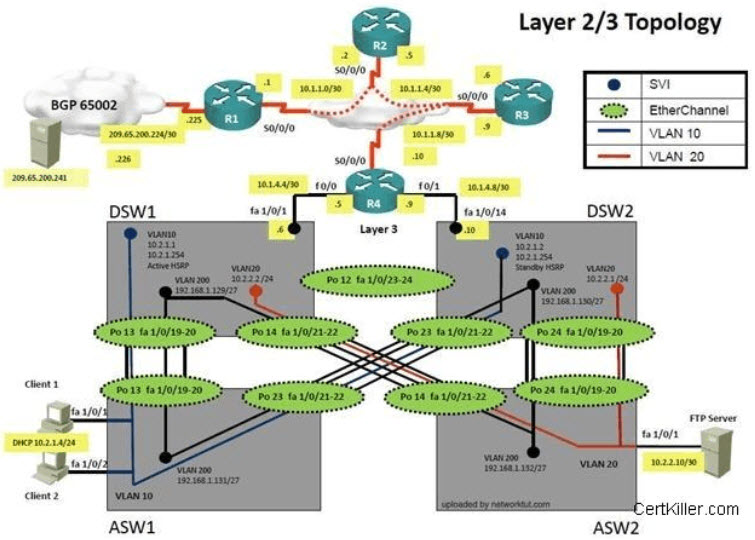

Figure 2
Trouble Ticket Statement
Client one is getting a 169.x.x.x IP address and is not able to ping Client 2 or DSW1. Inital troubleshootingshows that port Fa1/0/1 on ASW1 is in errdisable state.
Configurationon ASW1
Interface FastEthernet1/0/1
switchport mode access
switchport port-security
switchport port-security mac-address 0000.0000.0001
What is the solution of the fault condition?()
A . Configurationure Static IP Address on Client 1
B . Change the IP Address of VLAN 10 on DSW1
C . Issue shutdown command followed by no shutdown command on port fa1/0/1 on ASW1
D . Issue no switchport port-security mac-address 0000.0000.0001 command followed by shutdown and noshutdown command on port fa1/0/1 on ASW1
E . Issue no switchport port-security mac-address 0000.0000.0001 command on port fa1/0/1 on ASW1
Following ticket consists of a problem description and existing configuration on the device.
Figure 1
Figure 2
Trouble Ticket Statement
Client one is getting a 169.x.x.x IP address and is not able to ping Client 2 or DSW1. Inital troubleshootingshows that port Fa1/0/1 on ASW1 is in errdisable state.
Configurationon ASW1
Interface FastEthernet1/0/1
switchport mode access
switchport port-security
switchport port-security mac-address 0000.0000.0001
What is the solution of the fault condition?()
● 参考解析
本题暂无解析
