Following ticket consists of a problem description and existing configuration on the device.

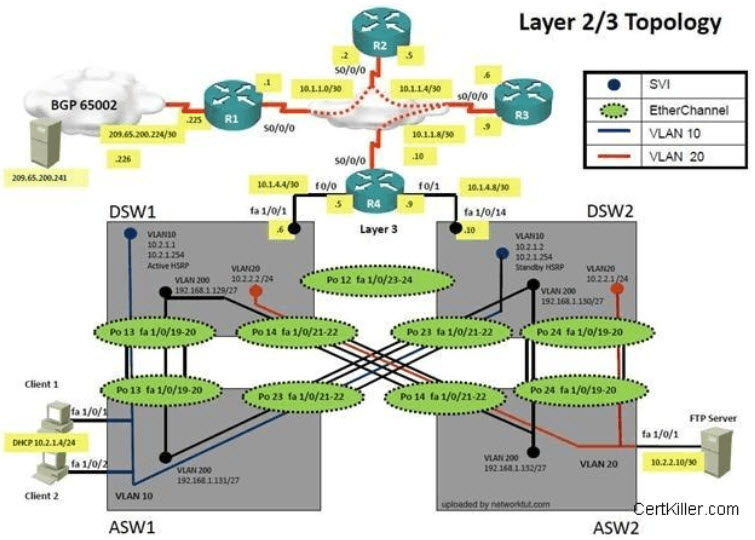

Figure 1

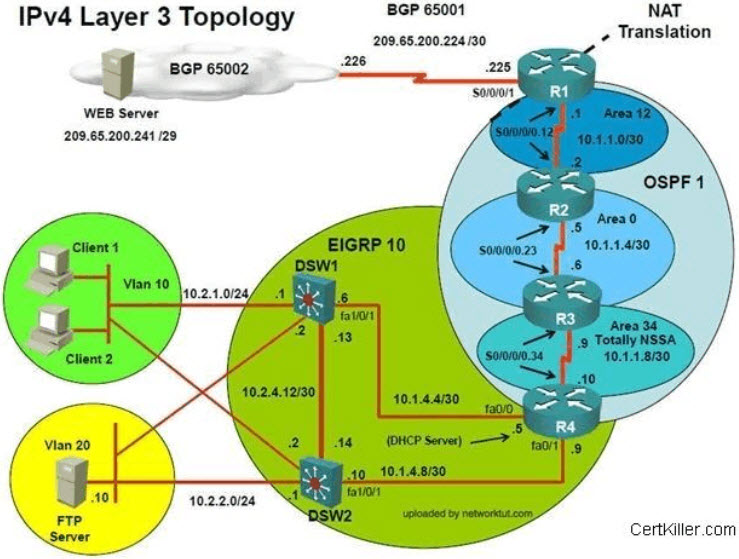

Figure 2
Trouble Ticket Statement
Client 1 and Client 2 are getting a 169.x.x.x IP address and are not able to ping DSW1 or the FTP Server.They are able to ping each other.
Configurationon ASW1
Interface PortChannel13
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface PortChannel23
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface FastEthernet1/0/1
switchport mode access
switchport access vlan 10!
Interface FastEthernet1/0/2
switchport mode access
switchport access vlan 10!
On Which device is the fault condition located?()
A . ASW1
B . DSW1
C . Client 1
D . FTP Server
Following ticket consists of a problem description and existing configuration on the device.
Figure 1
Figure 2
Trouble Ticket Statement
Client 1 and Client 2 are getting a 169.x.x.x IP address and are not able to ping DSW1 or the FTP Server.They are able to ping each other.
Configurationon ASW1
Interface PortChannel13
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface PortChannel23
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface FastEthernet1/0/1
switchport mode access
switchport access vlan 10!
Interface FastEthernet1/0/2
switchport mode access
switchport access vlan 10!
On Which device is the fault condition located?()
● 参考解析
本题暂无解析
