Following ticket consists of a problem description and existing configuration on the device.

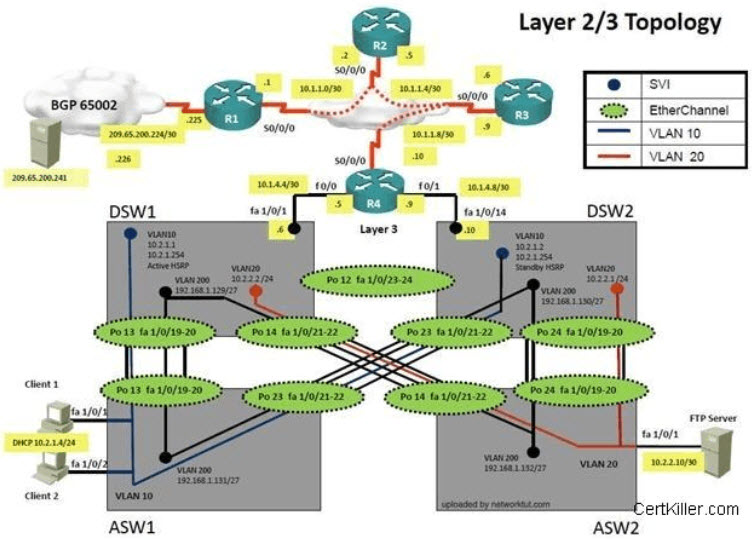

Figure 1

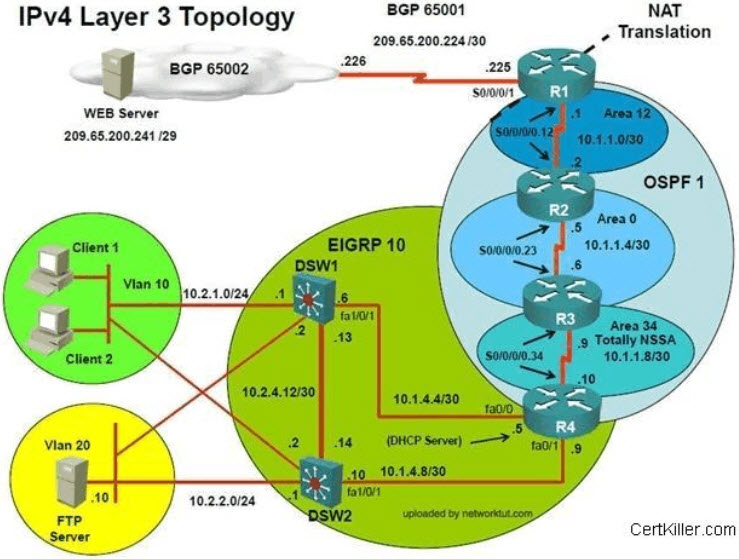

Figure 2
Trouble Ticket Statement
Client 1 and Client 2 are getting a 169.x.x.x IP address and are not able to ping DSW1 or the FTP Server.They are able to ping each other.
Configurationon ASW1
Interface PortChannel13
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface PortChannel23
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface FastEthernet1/0/1
switchport mode access
switchport access vlan 10!
Interface FastEthernet1/0/2
switchport mode access
switchport access vlan 10!
What is the solution of the fault condition?()
A . Change the VLAN assignment on fa1/0/1 and fa1/0/2 on ASW1 to VLAN 1
B . Change the IP Address of VLAN 10 on DSW1
C . Issue switchport trunk allowed vlan 10,200 on interface portchannel13 and portchannel23 on ASW1
D . Issue switchport trunk allowed vlan none on interface portchannel13 and portchanngel23 on ASW1
Following ticket consists of a problem description and existing configuration on the device.
Figure 1
Figure 2
Trouble Ticket Statement
Client 1 and Client 2 are getting a 169.x.x.x IP address and are not able to ping DSW1 or the FTP Server.They are able to ping each other.
Configurationon ASW1
Interface PortChannel13
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface PortChannel23
switchport mode trunk
switchport trunk allowed vlan 1-9!
Interface FastEthernet1/0/1
switchport mode access
switchport access vlan 10!
Interface FastEthernet1/0/2
switchport mode access
switchport access vlan 10!
What is the solution of the fault condition?()
● 参考解析
本题暂无解析
